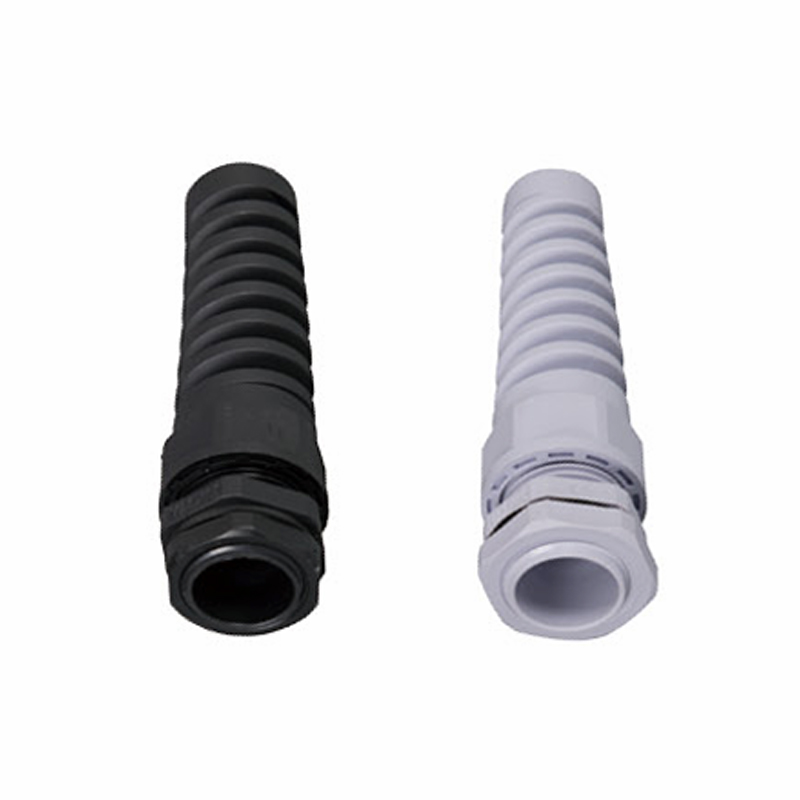

Cable Gland
Corrugated Conduit Elbow Connector
| Model | Applicable cables | Wrench diameter | The outer diameter of the thread | The outer diameter of thread | Total length |
| PG7 | 3-6.5 | 18mm | 12.2mm | 8mm | 28.9mm |
| PG9 | 4-8 | 22mm | 15.2mm | 8mm | 31.5mm |
| PG11 | 5-10 | 24mm | 18.7mm | 8mm | 33mm |
| PG13.5 | 6-12 | 27mm | 20.5mm | 9mm | 33.7mm |
| PG16 | 10-14 | 30mm | 22.3mm | 10mm | 35.9mm |
| PG21 | 13-18 | 36mm | 28.3mm | 10mm | 39.8mm |
| M12 | 3-6.5 | 16mm | 12mm | 8mm | 28.9mm |
| M16 | 4-8 | 19mm | 16mm | 8mm | 31.5mm |
| M18 | 5-10 | 22mm | 18mm | 8mm | 33mm |
| M20 | 6-12 | 24mm | 20mm | 9mm | 33.7mm |
| M22 | 10-14 | 27mm | 22mm | 10mm | 35.9mm |
| M25 | 13-18 | 33mm | 25mm | 10mm | 39.8mm |
