Cable Gland

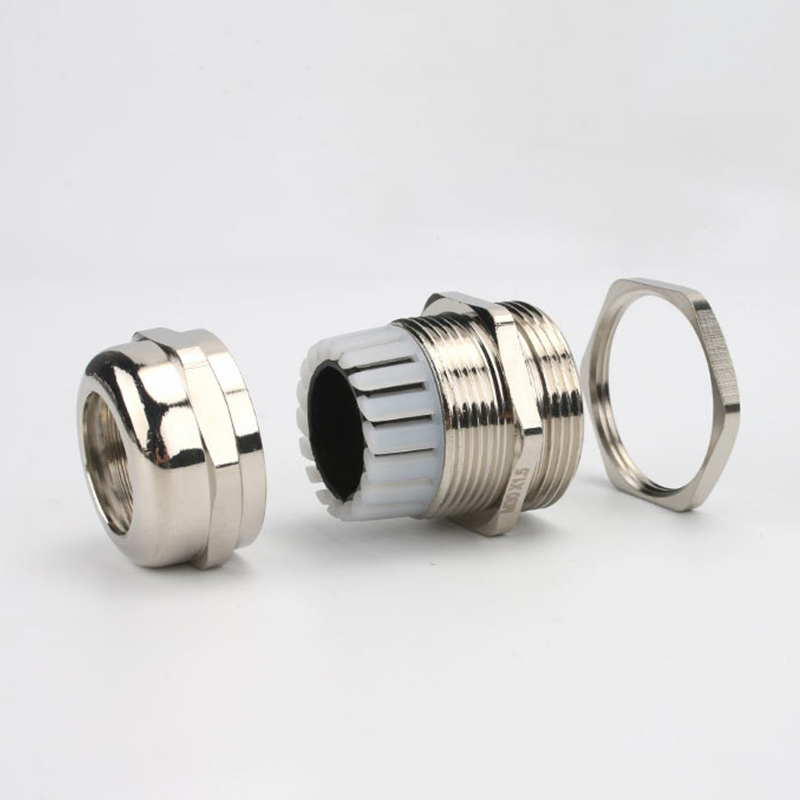

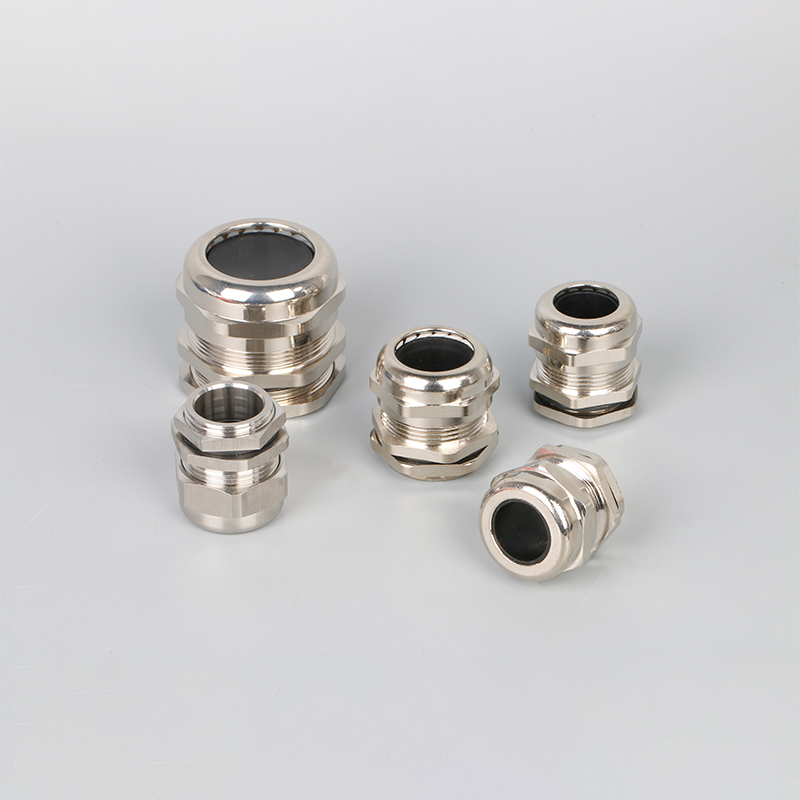

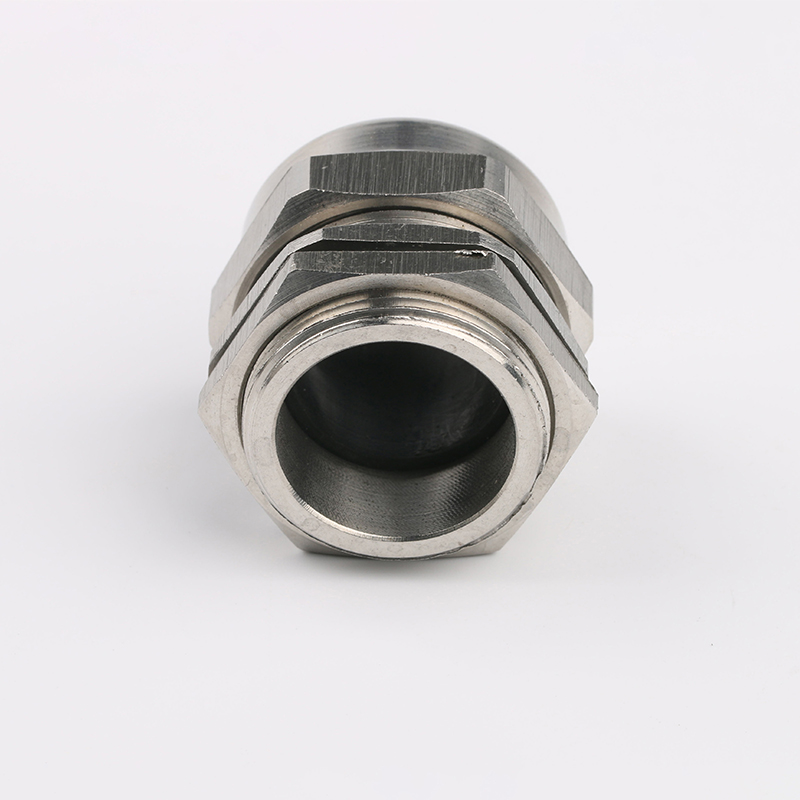

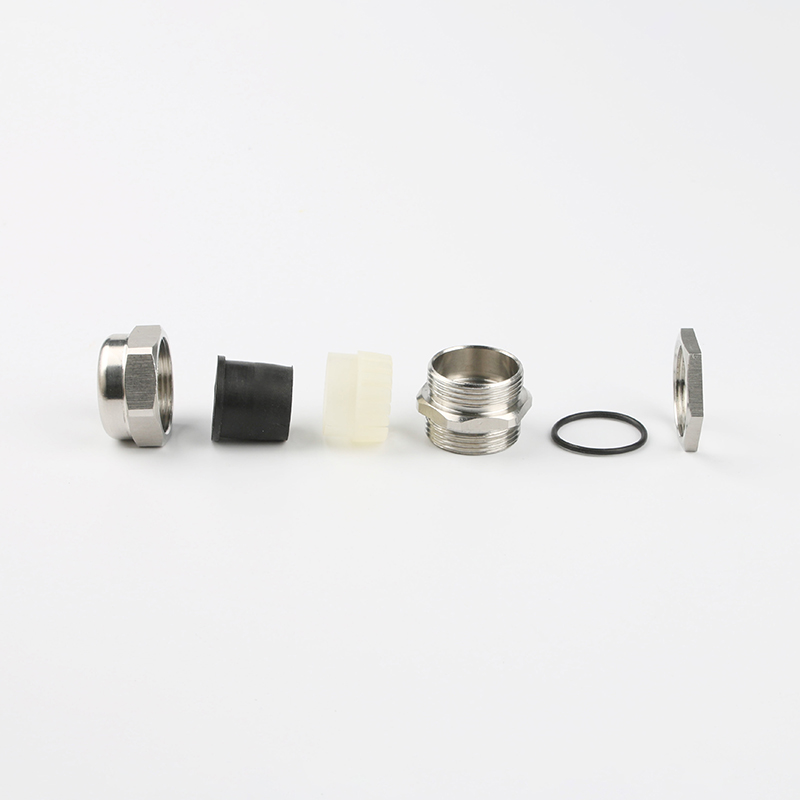

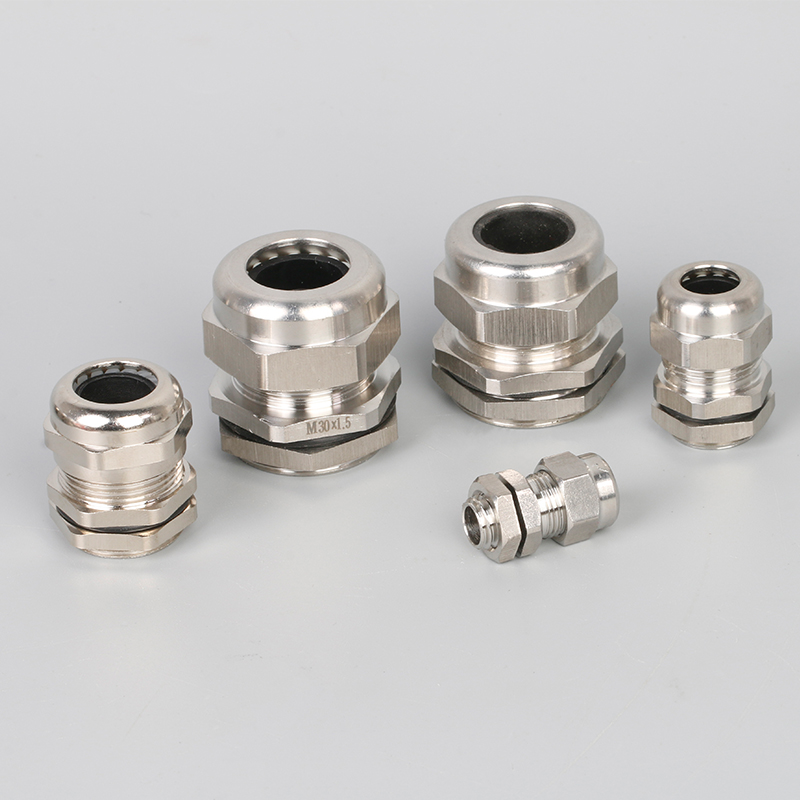

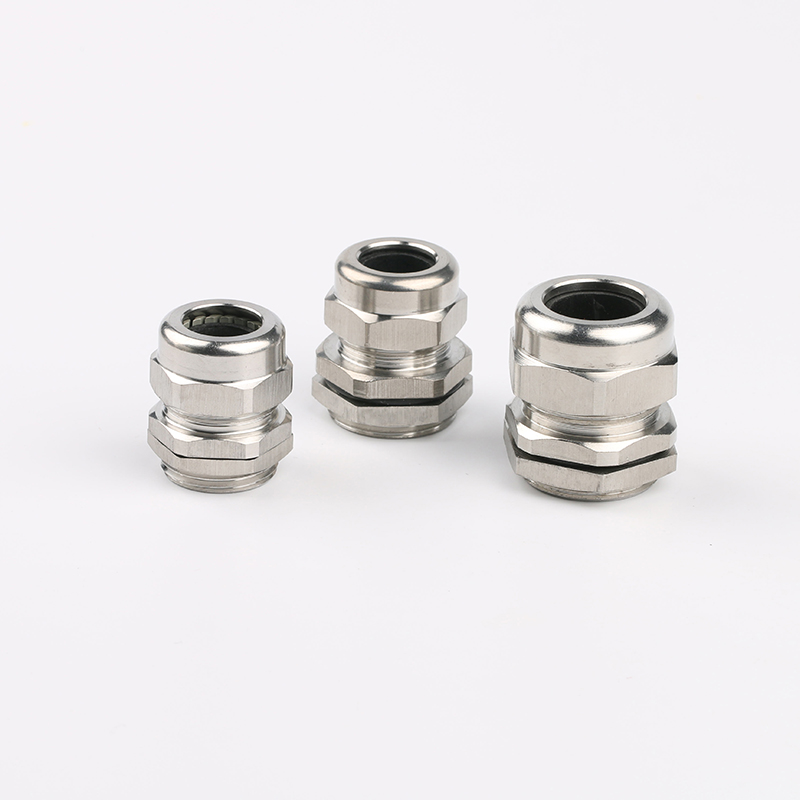

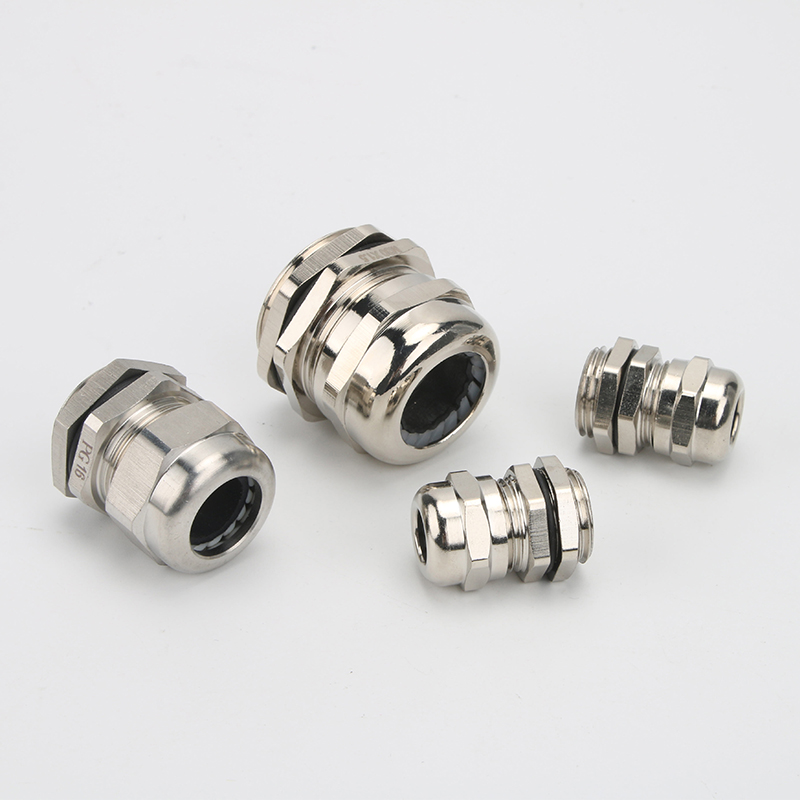

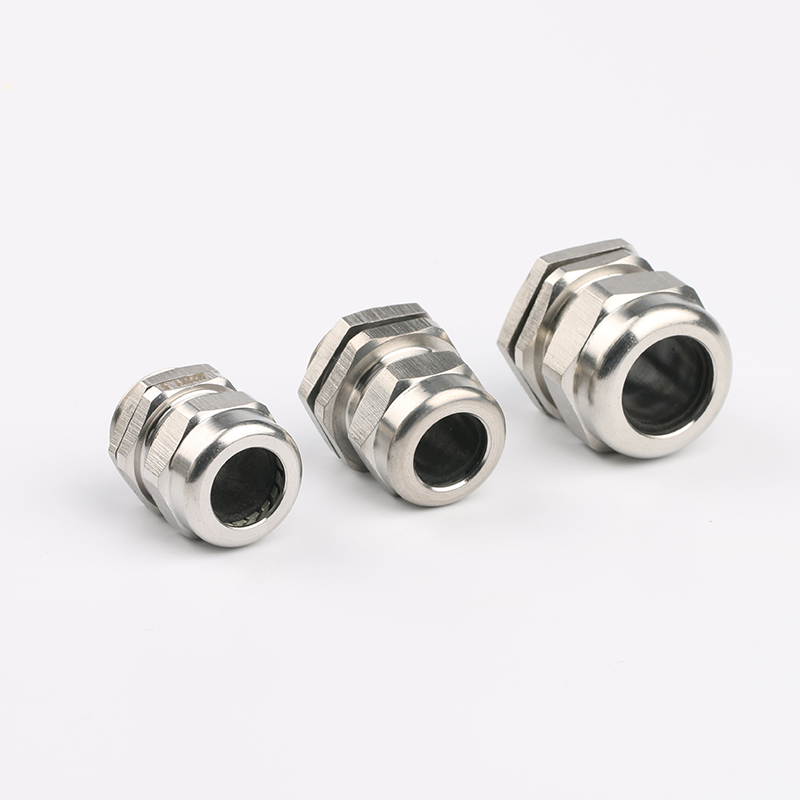

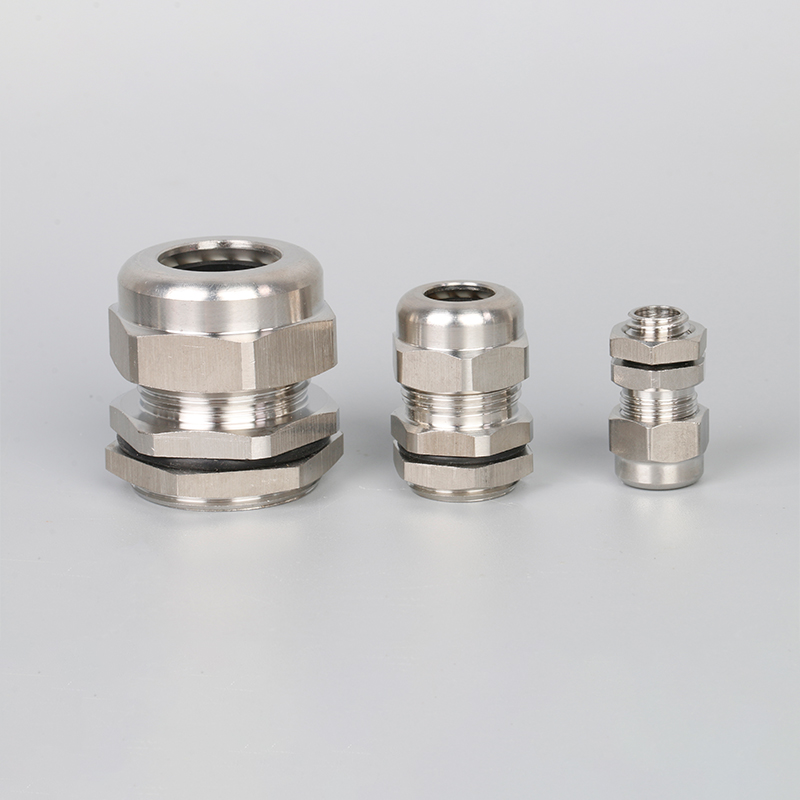

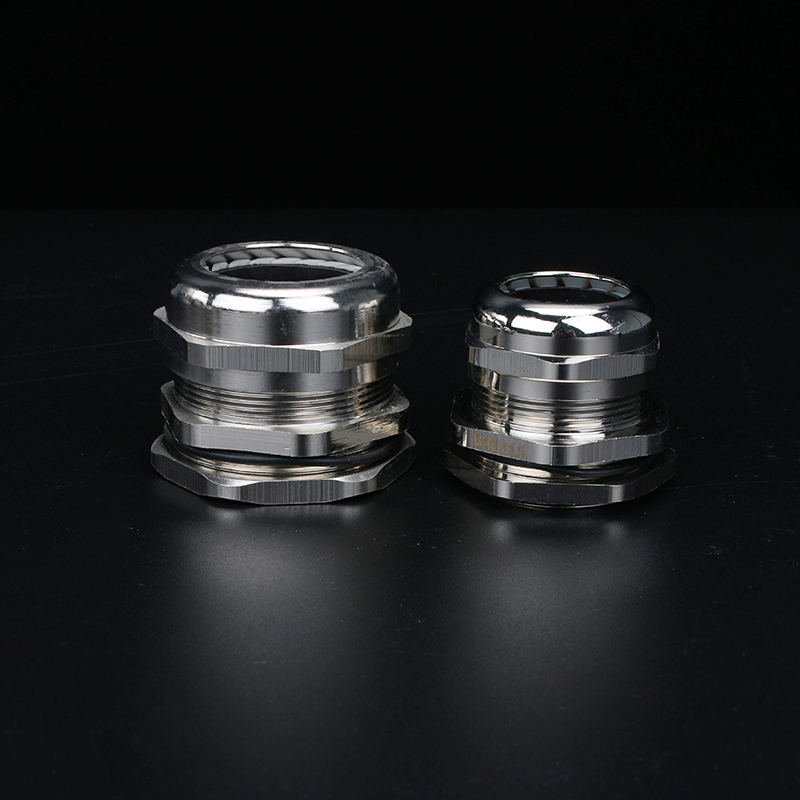

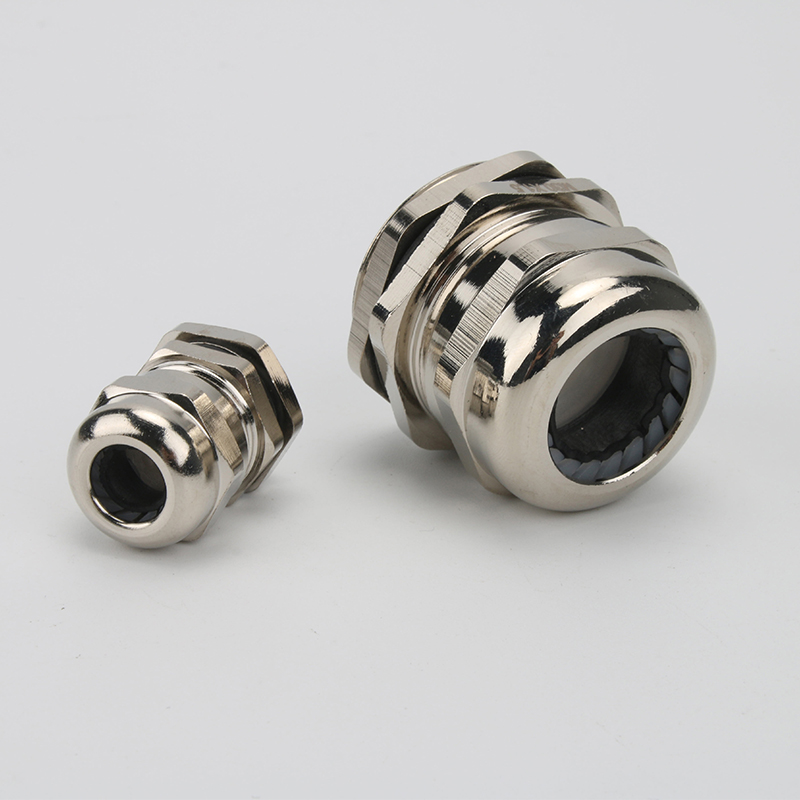

Brass Cable Gland

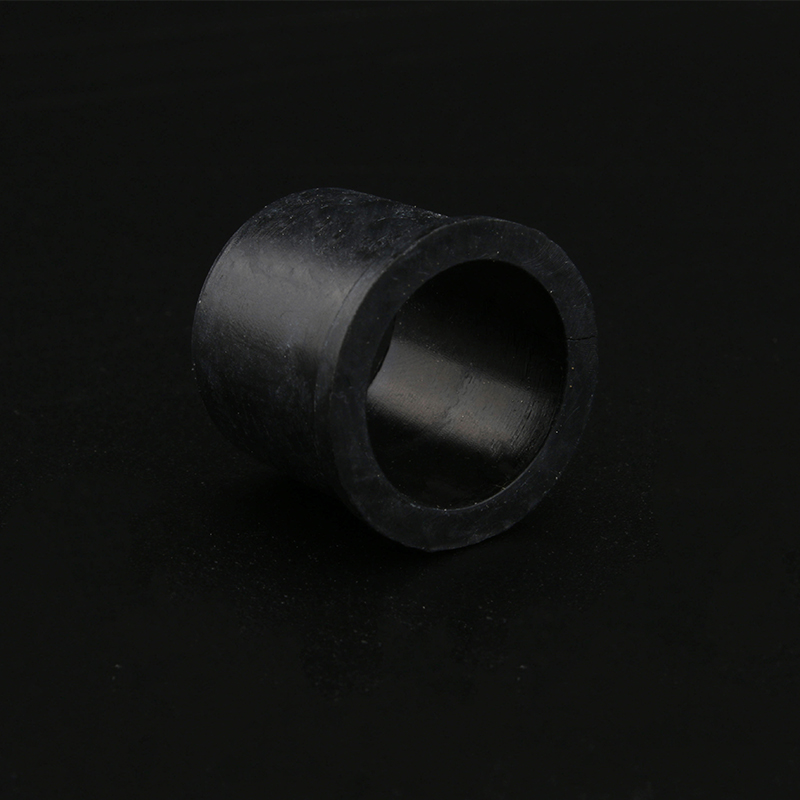

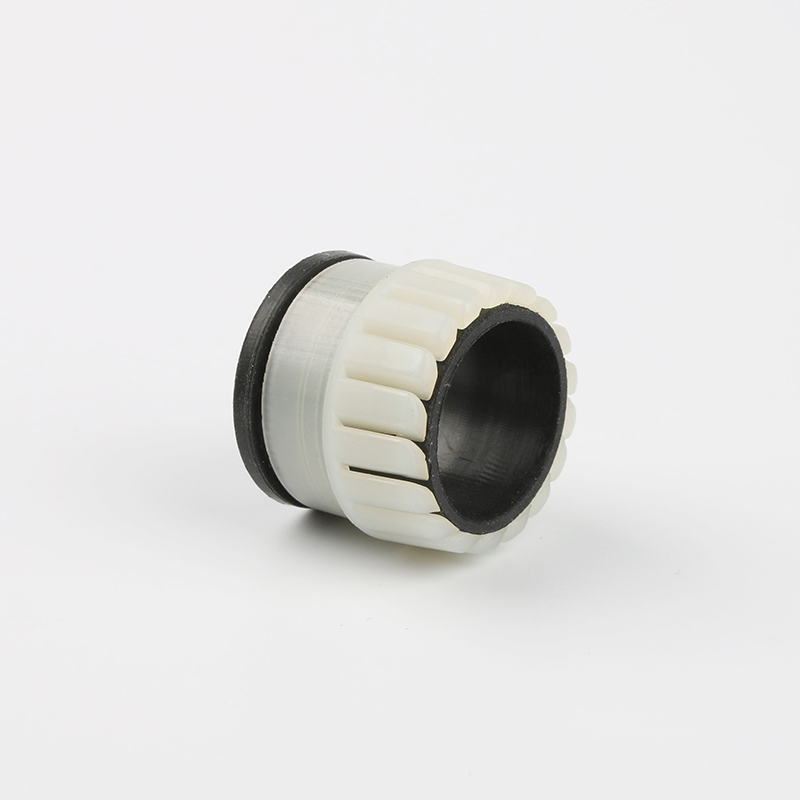

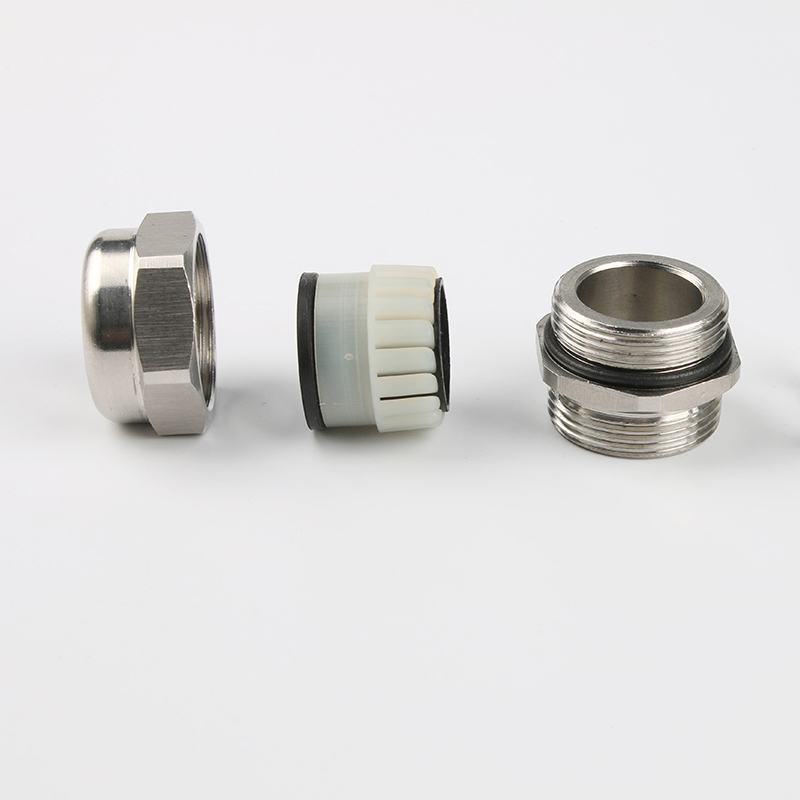

(1) Material:nickel-plated brass, Sealing& Sealing Ring Material: NBR
(2) 1P68water-protection
(3) Workingtemperature:-40℃ ~100℃ in static state.Instantaneous heat resistance up to 120℃
(4) Workingtemperature:-20℃~ 80℃ in dynamic state.Instantaneouheat resistance up to 100℃
(5) Customization is available

E-mail: [email protected]
Inquiry Us Now!
PREV：Corrugated Conduit Bracket
NEXT：Corrugated Conduit Elbow Connector
  • Model D(mm)
    ±0.1    		 B(mm)
    ±0.1    		 D2(mm)
    ±0.1    		 L(mm)
    ±0.1    		 L1(mm)
    ±0.1    		 L2(mm)
    ±0.1    		 Cable range
    PG-7 12.1 14 15.5 25.5 7 3 3-6.5
    PG-9 15 18 20 27.4 7.6 3 4-8
    PG-11 18.2 21 23 22.6 7.5 3 5-11
    PG-13.5 20 22 24 29 7.9 3 6-12
    PG-16 22.2 24 26.3 30 7.9 3 10-14
    PG-19 24.7 27 29 31 9 3.5 10-14
    PG-21 28 30 32.9 33 9 3.6 13-18
    PG-25 315 35 38 37.3 10 4 15-22
    PG-29 36.5 40 44 38.9 9.5 4.1 18-25
    PG-36 46.5 50 55 46.5 10.5 5.1 25-33
    PG-42 53.6 57 63 49 12.5 5 32-38
    PG-48 58.9 64 69.9 515 13 6 37-44
    PG-63 70.6 77 82 55 15 6 42-52
    M8*1 7.9 12 13 20 5.9 1.9 3-3.8
    M10*1 9 14 15.5 22.5 5.9 3 3-6.5
    M12*15 11.5 14 15.2 22.5 7 3 3-6.5
    M14*1.5 13.5 17 18.8 26 7 3 3-6.5
    M16*15 15.5 18 20 26 7 3 4-8
    M18*1.5 17.9 20 21 27 7.5 3 5-11
    M20*15 19.5 22 24 28.5 7.5 3 6-12
    M22*15 21.9 23 24 29 8 3.1 10-14
    M24*15 23.5 27 29 31.2 8 3.2 10-14
    M25*15 24.9 27 29 32 9 3.8 10-14
    M25*15 24.9 27 29 34.5 9 3.8 13-18
    M27*15 26.5 30 33 34.5 9 3.8 13-18
    M28*15 28 30 33 34.5 7.6 4 13-18
    M30*15 29.6 32 36.2 37.5 9.5 3.5 13-18
    M32*15 316 35 38 37.5 9.5 4 15-22
    M33*15 32.6 35.1 38 36.4 10 4 15-22
    M36*15 36.5 40 43.6 39.3 9.6 4 18-25
