Wire Accessories

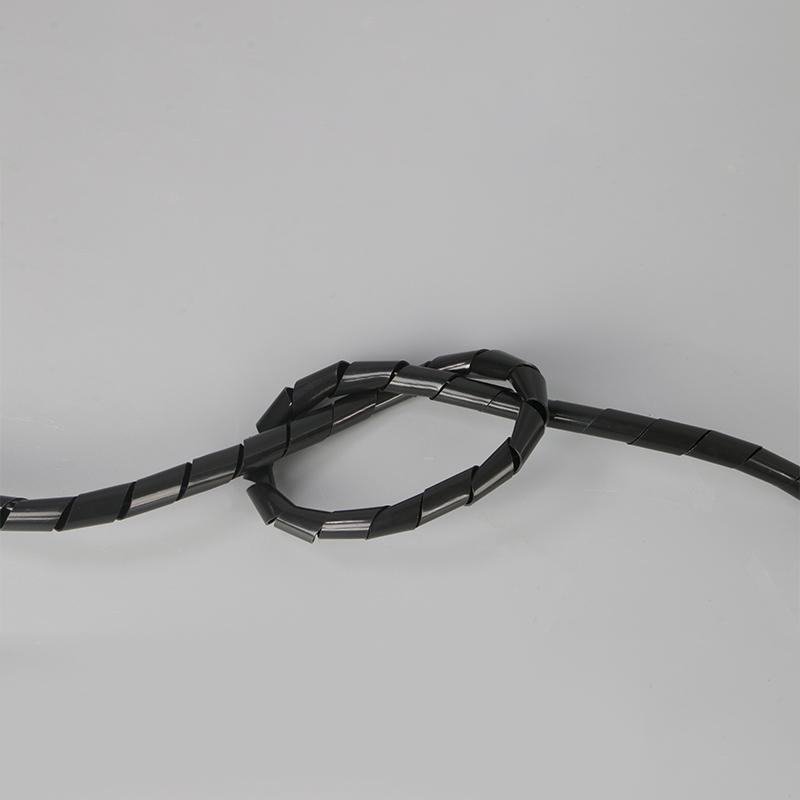

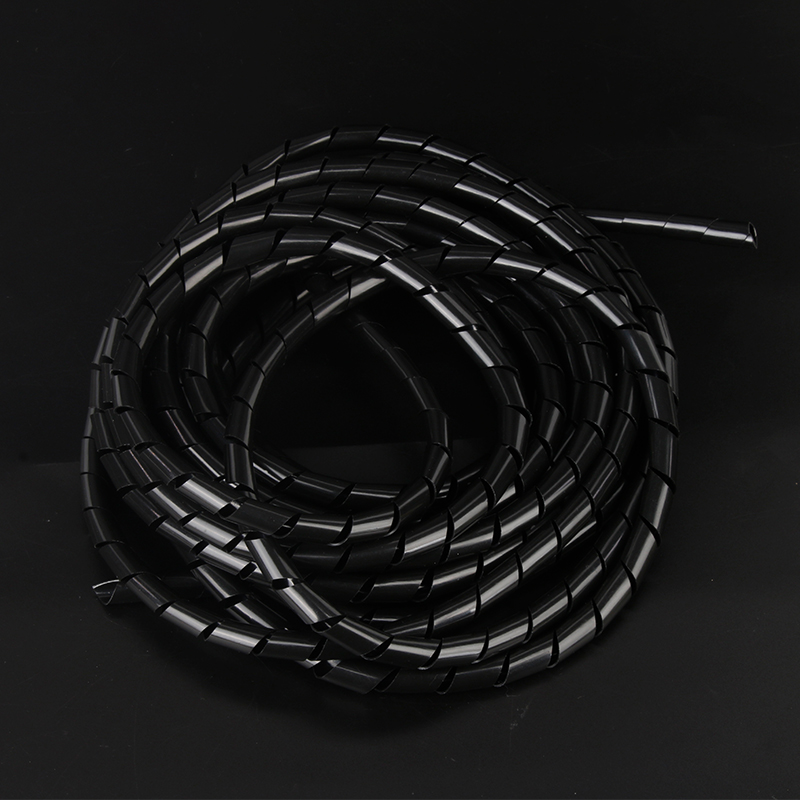

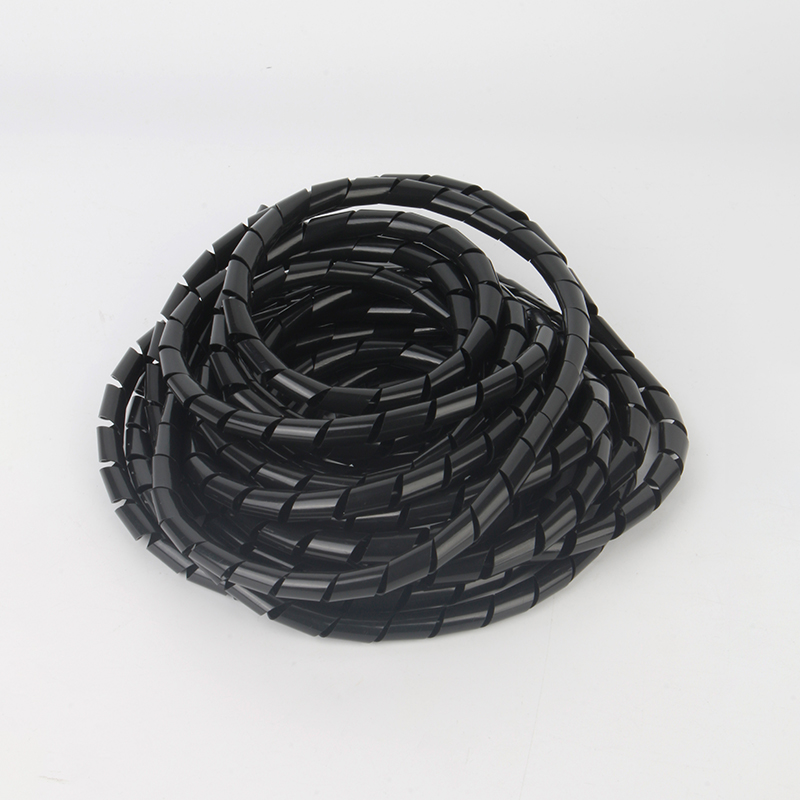

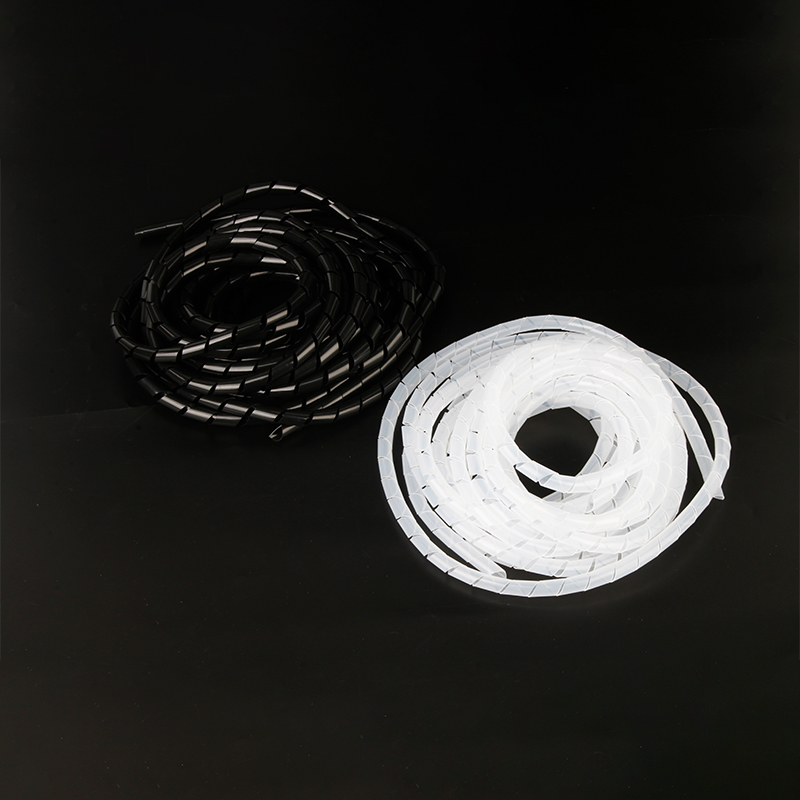

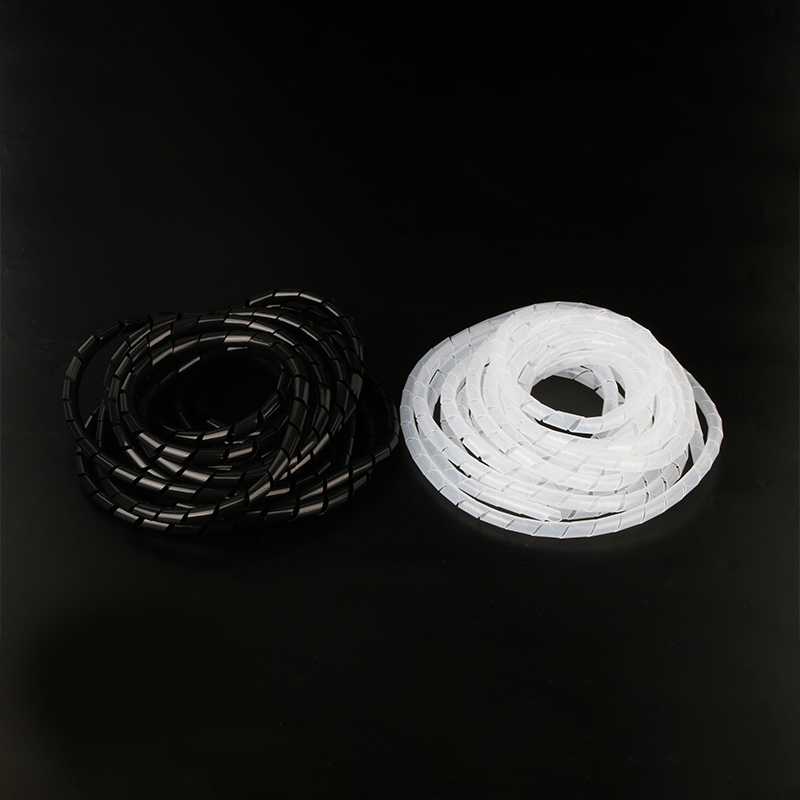

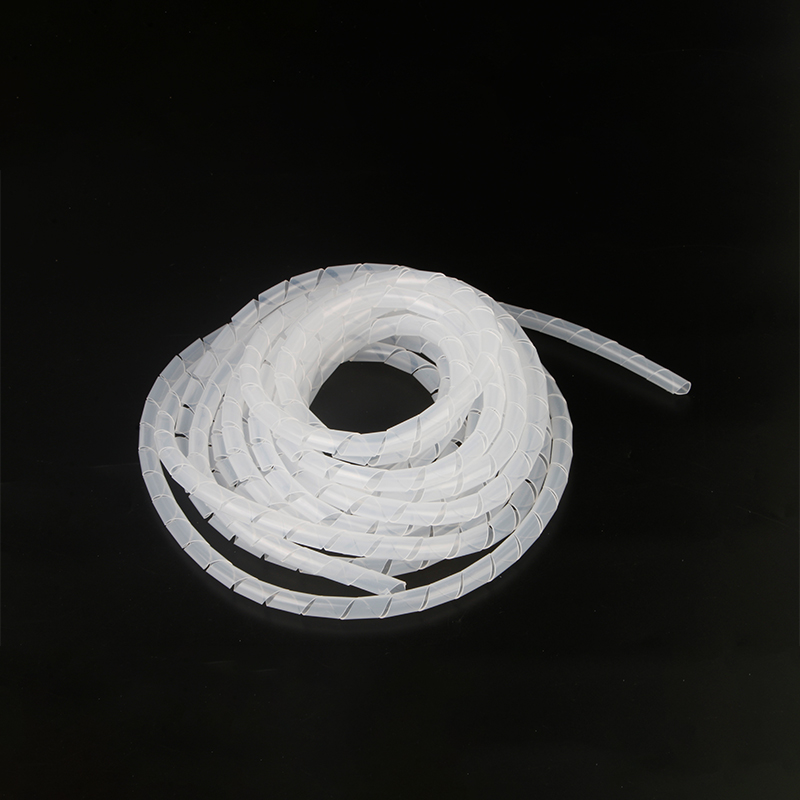

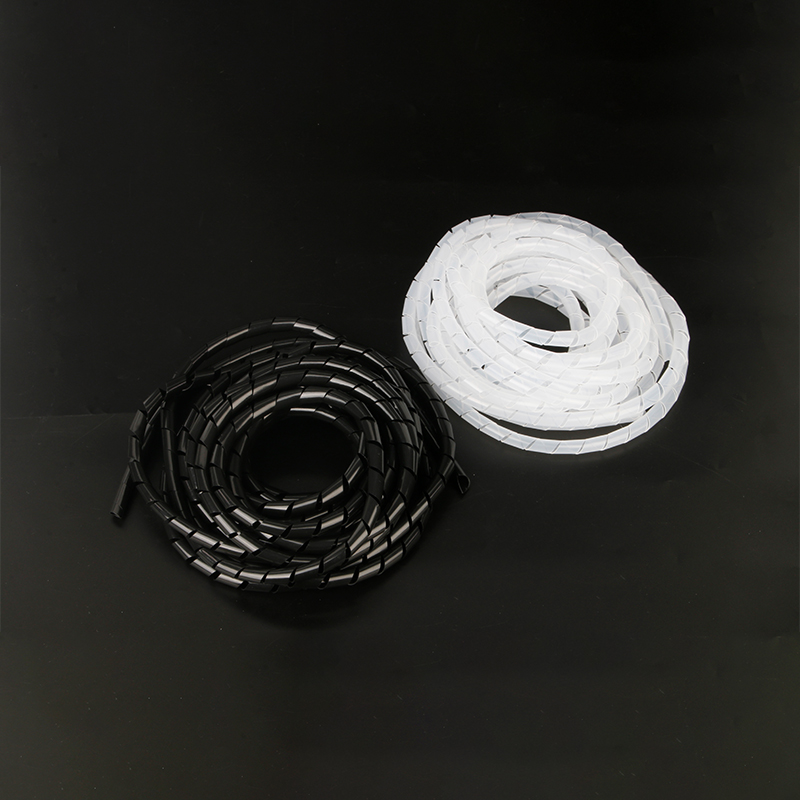

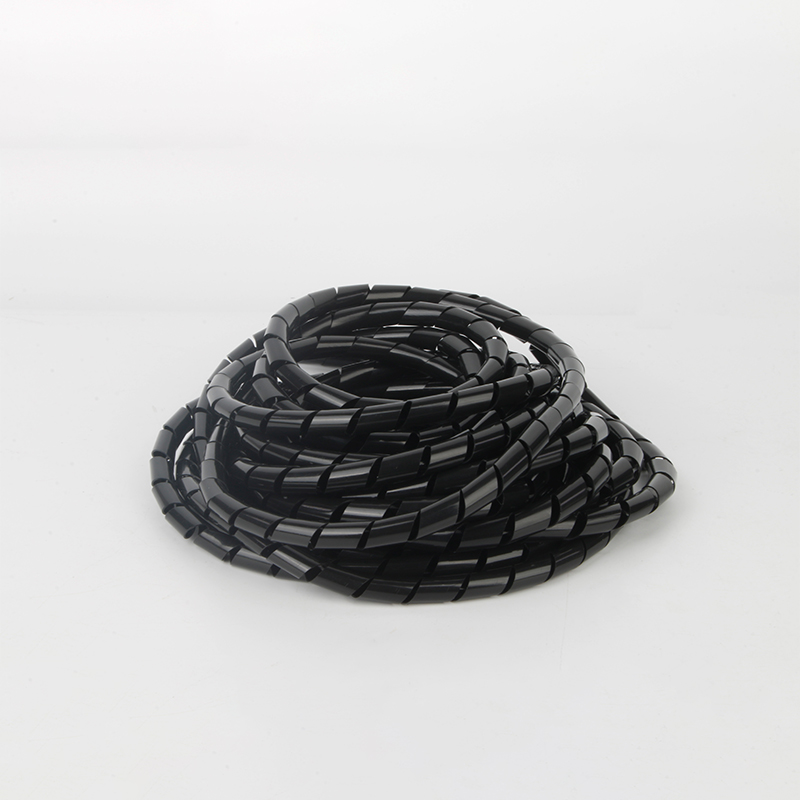

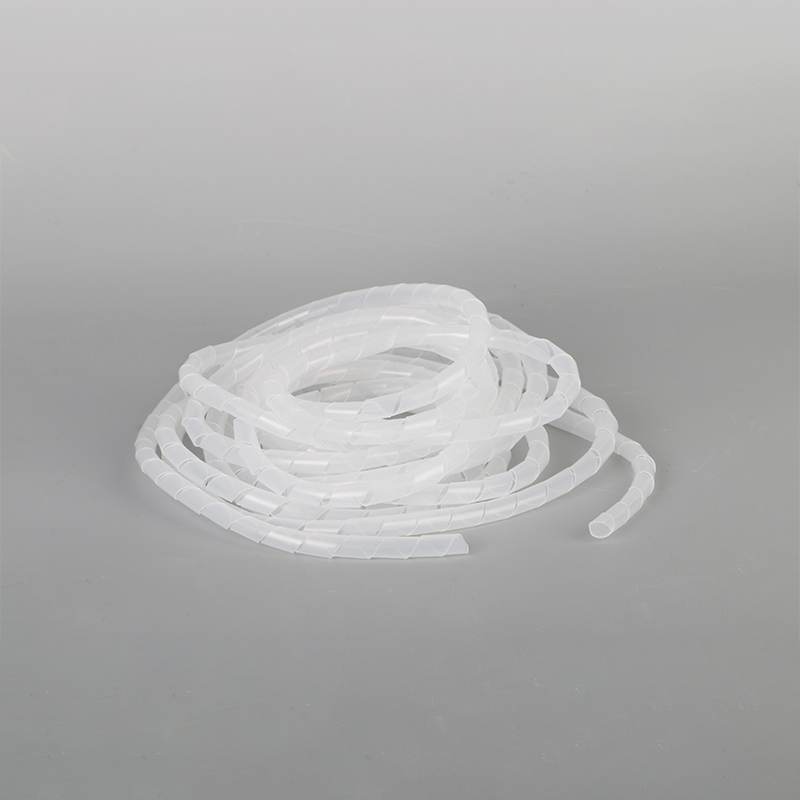

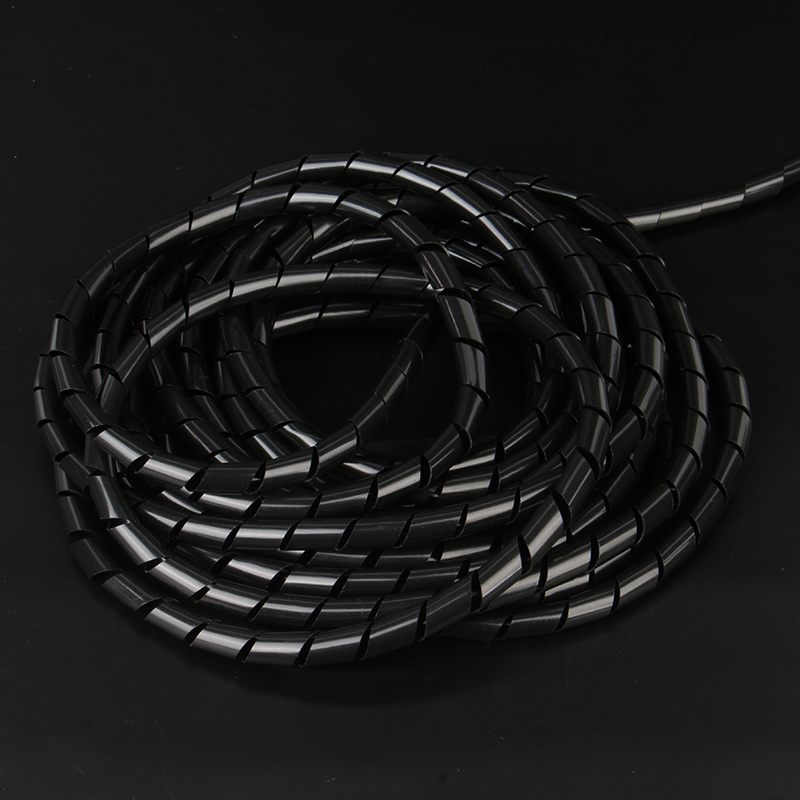

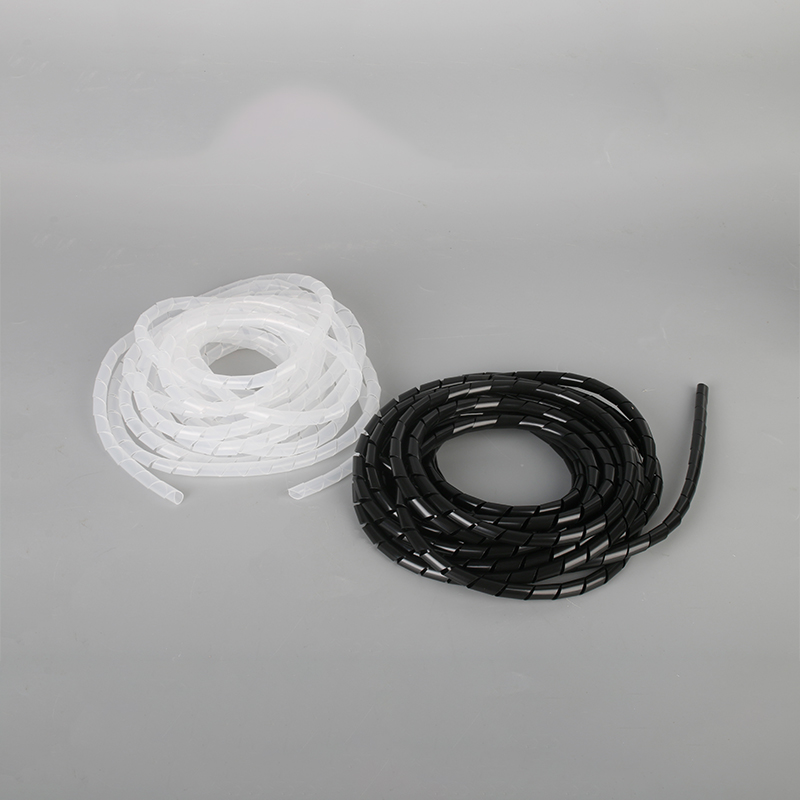

Spiral Winding Pipe
● Material: PE.

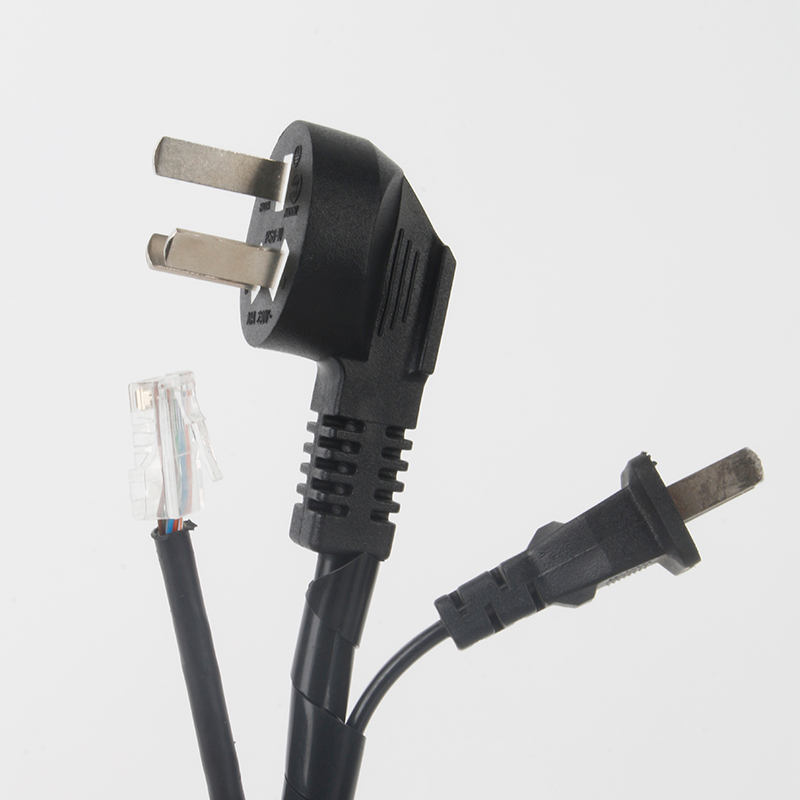

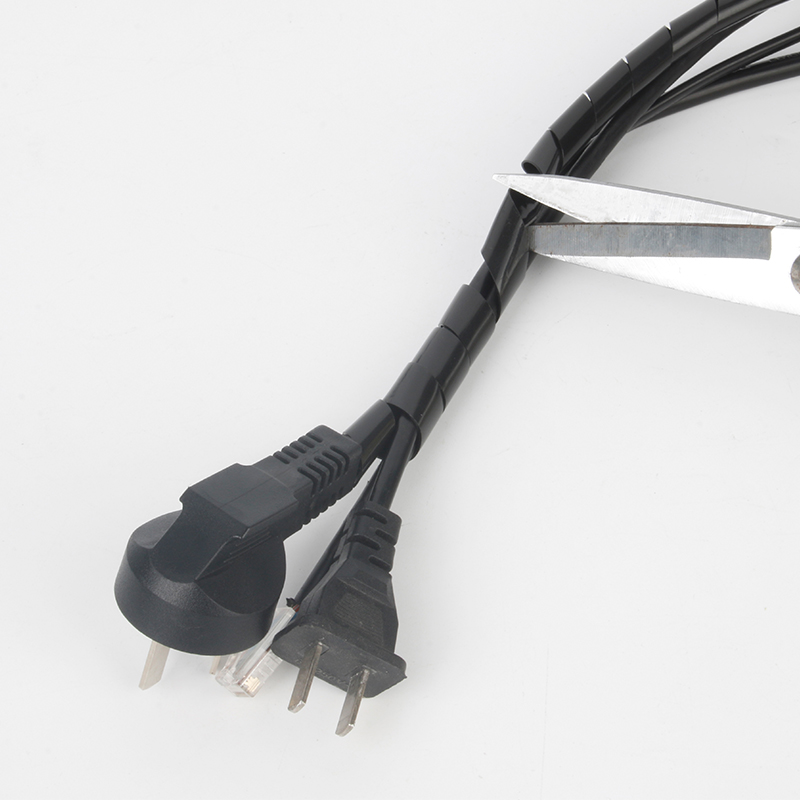

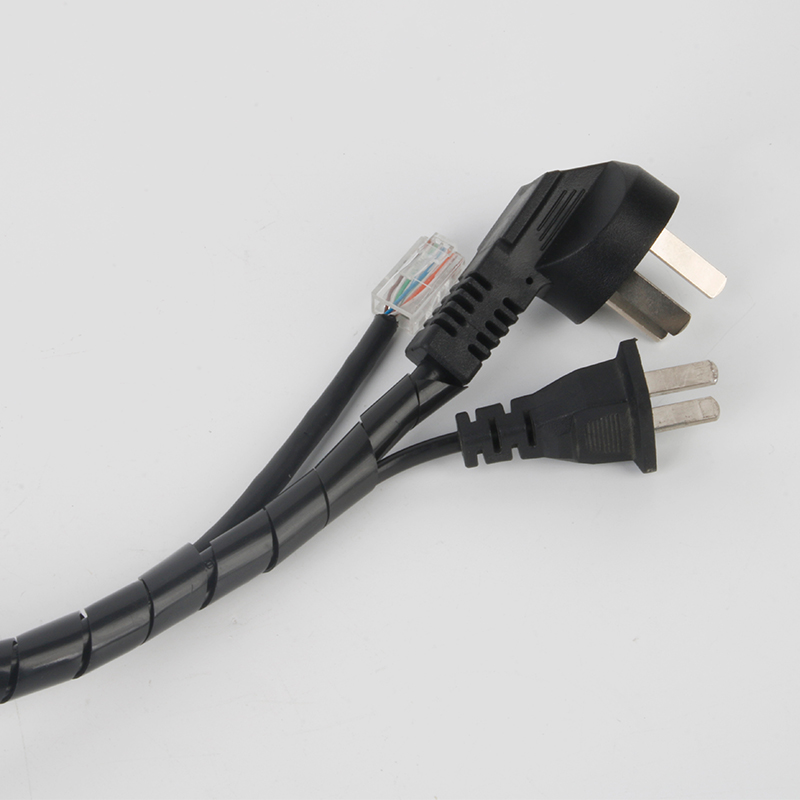

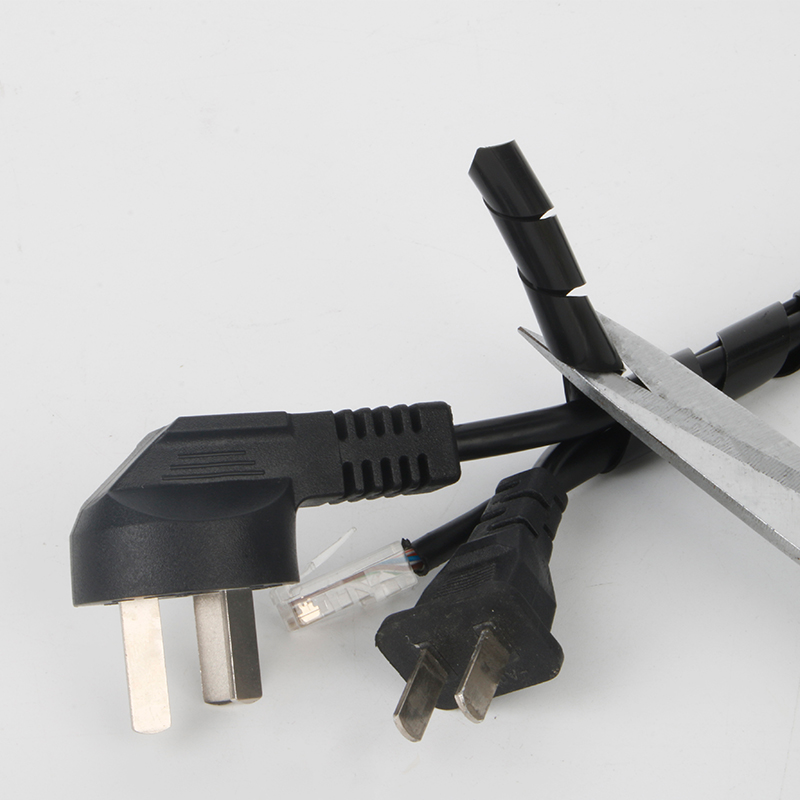

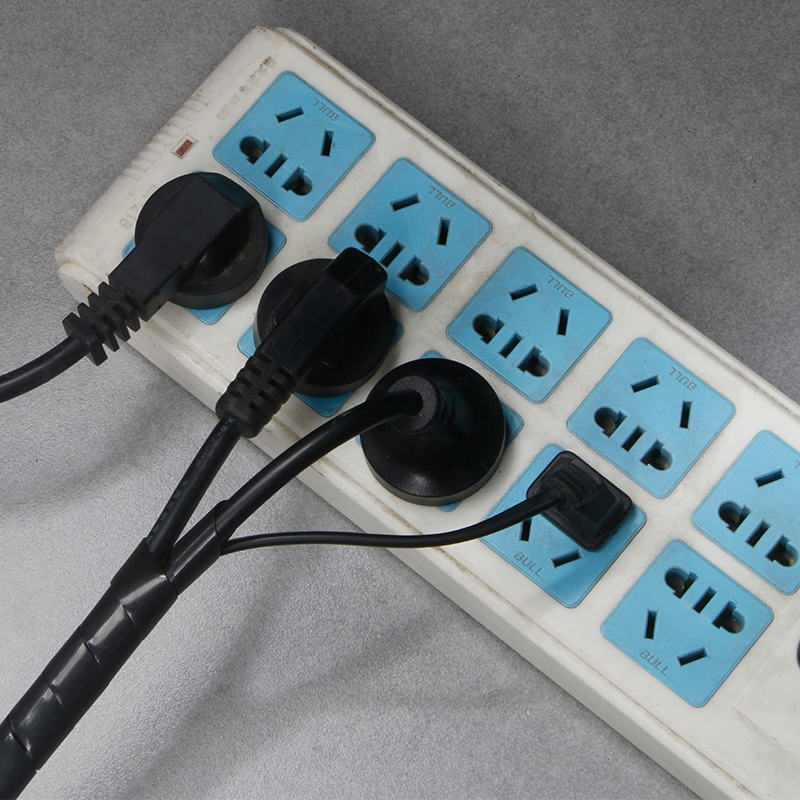

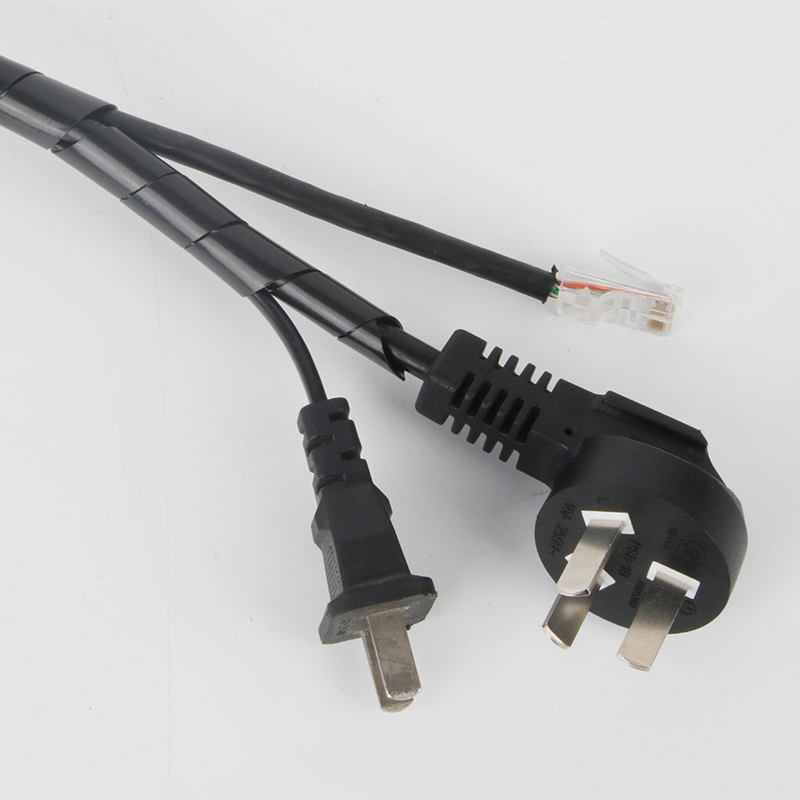

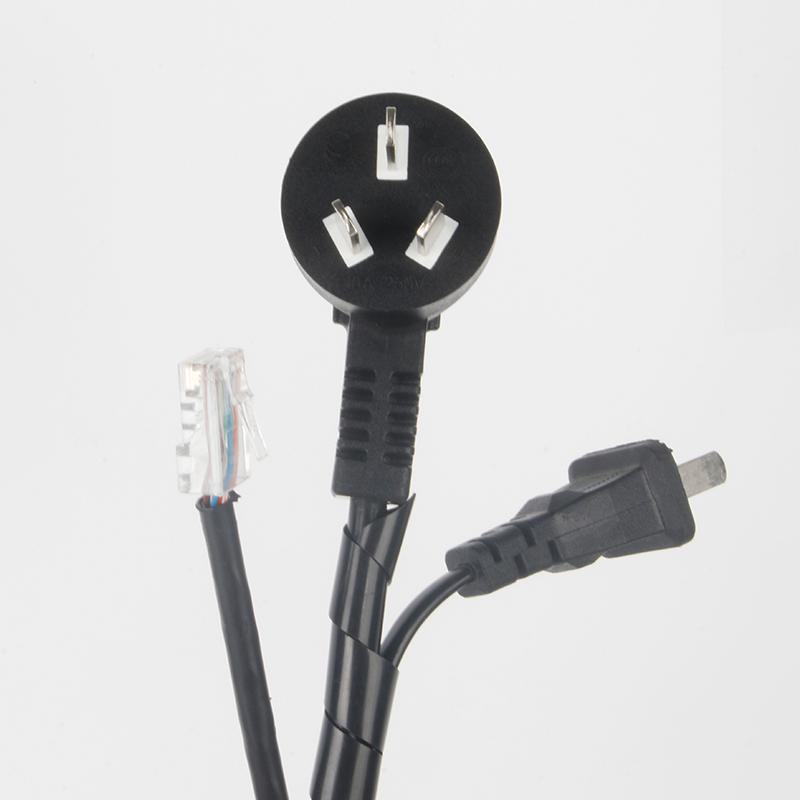

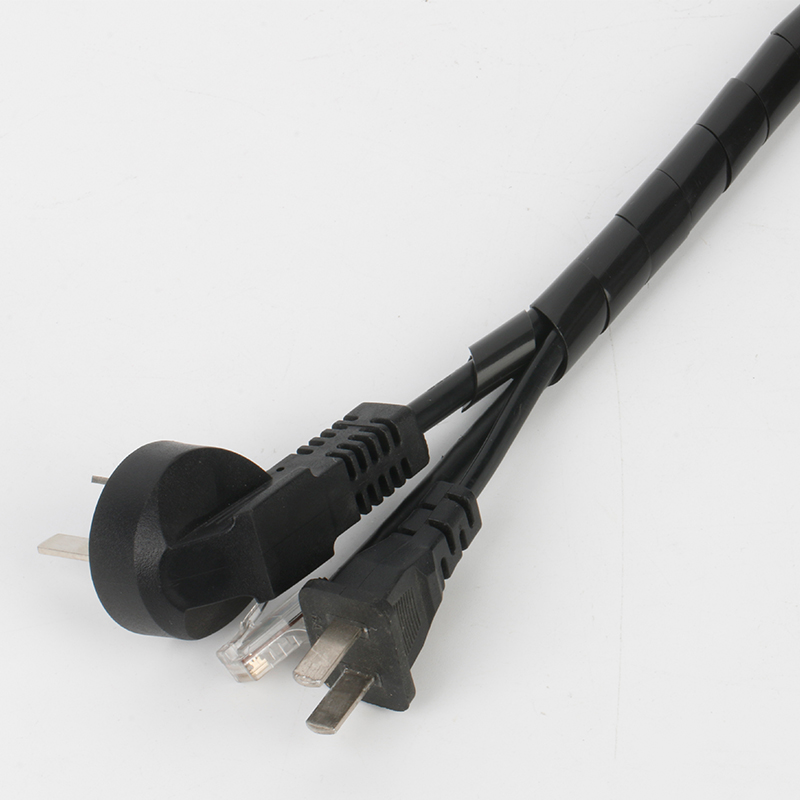

● Usage: first, fix one end of the seven points with the protection belt, and then tighten it around clockwise to integrate the wire harness.
| Model(mm) | Length(meter) | OD(mm) | ID(mm) | Thickness(mm) | Weight(g) |
| φ4 | 17-20 | 4.32 | 3.04 | 0.64 | 97 |
| φ6 | 13-15 | 5.88 | 4.58 | 0.65 | 108 |
| φ8 | 10-12 | 7.48 | 6.12 | 0.68 | 108 |
| φ10 | 8-10 | 9.12 | 7.76 | 0.68 | 108 |
| φ12 | 7-8 | 10.89 | 9.47 | 0.71 | 108 |
| φ14 | 5-6 | 13.51 | 12.07 | 0.72 | 108 |
| φ16 | 4-5 | 15.51 | 13.95 | 0.78 | 108 |
| φ18 | 3-4 | 17.26 | 15.54 | 0.86 | 108 |
| φ20 | 2.7-3 | 18.53 | 16.51 | 1.01 | 113 |
| φ25 | 2-2.2 | 22.68 | 20.32 | 1.18 | 113 |
| φ30 | 1.7-2 | 24.5 | 21.98 | 1.26 | 113 |
