Cable Gland

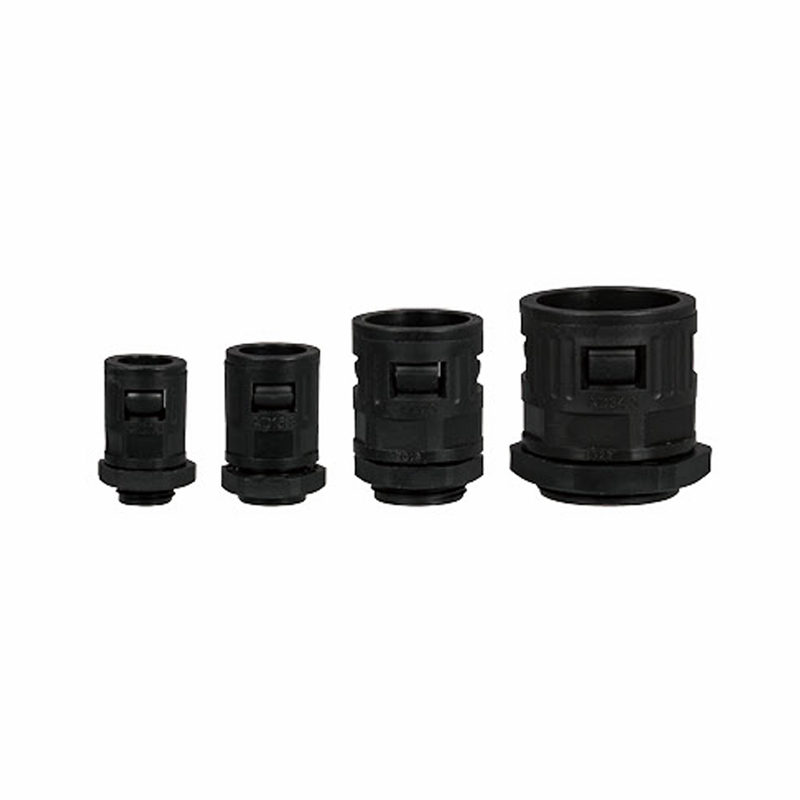

Corrugated Conduit Gland
● Material: PE.
● Thread spec: Metric, PG.
● Working temperature: -45°C~+120'C,short-term to 150°C
● Properties: Self-extinguishing, free of halogen, phosphor, and cadmium, with excellent impact strength.
| Model | German Thread(M) | OD(mm) | ID(mm) | Gl(mm) | H |
| AD10.0 | M12x1.5 | 12 | 8 | 10 | 18 |
| AD13.0 | M16x1.5 | 16 | 10 | 10 | 19 |
| AD15.8 | M18x1.5 | 18 | 12 | 10 | 23 |
| AD18.5 | M20x1.5 | 20 | 14.3 | 12 | 25 |
| AD21.2 | M20x1.5 | 24 | 17 | 13 | 27 |
| AD25.0 | M25x1.5 | 25 | 19.5 | 14 | 30 |
| AD28.5 | M25x1.5 | 25 | 20 | 14 | 32 |
| AD34.5 | M32x1.5 | 32 | 26 | 14 | 35 |
| AD42.5 | M40x1.5 | 40 | 34 | 14 | 38 |
| AD54.5 | M63x1.5 | 63 | 44 | 15.5 | 39 |
